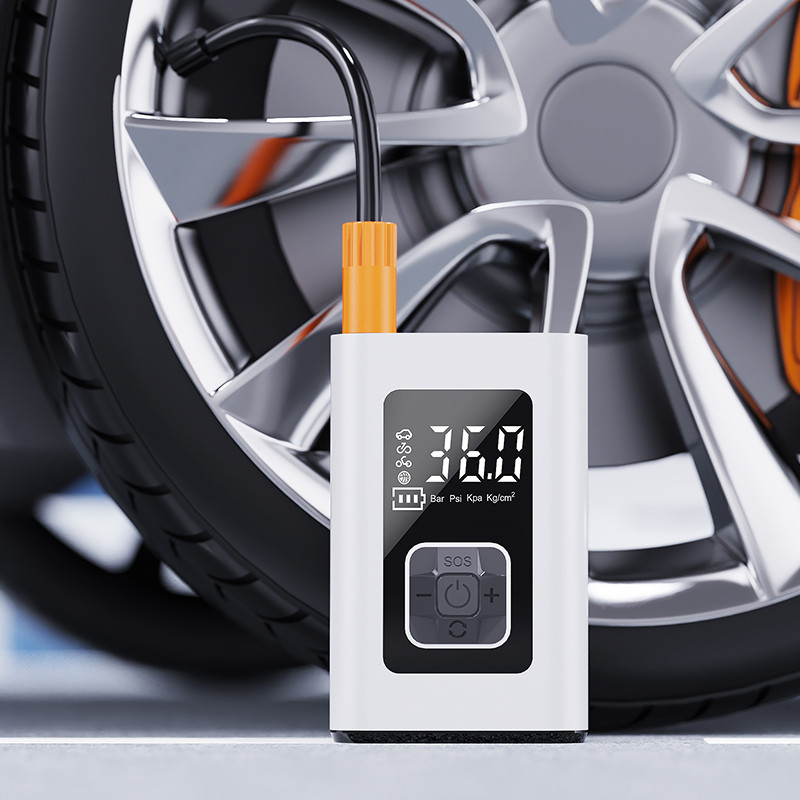

Product name:Portable air pump
Executive standard:GB 4706.1-2005
| Product name | Portable air pump |
| Executive standard | GB 4706.1-2005 |
| Product size | 80*44*125mm |
| Net weight of product | 480g |
| Rated power | 60W |
| Electric current | ≤20A |
| Voltage | DC 7.4V |
| Cylinder bore | 17mm |
| Inflatable flow | 16L/min |
| Unit display | Bar、Psi、Kpa、Kg/cm2 |
| Screen parameters | Automobile: 36Psi |
| Bicycle: 45Psi | |
| Motorcycle: 32Psi | |
| Ball games: 9Psi | |
| Inflation pressure range | 0.2-10.3bar/3-150psi |
| Working temperature | Charging: 0℃ ~ 40℃ |
| Discharge:-10℃ ~ 45℃ | |
| Storage temperature | -10℃～45℃ |
| Tracheal size | 170mm (excluding air nozzle) |
| Air faucet | French mouth/rubber boat adapter/swimming ring adapter/ball needle |
| Power supply mode | 1650 lithium battery 2000mAh2 section |
| Working noise | 1m distance noise is lower than 90db |
| Input parameter | Adapter voltage 5V, current 1A or above |
| Charging interface | USB Type-C |
| Output interface | USB-A |
| Charging time | About 3 hours |
| (The charging time will vary depending on the environment) | |
| Measurement accuracy | 3～50±1psi/51～100±2psi/101～150±3psi |
| Maximum pressure | 150psi |
| Product features | SOS alarm lamp/lighting, preset tire pressure, memory setting value, charging treasure function, anti-scalding design of air nozzle sinking, heat dissipation holes on both sides, and easy heat dissipation of metal shell. |

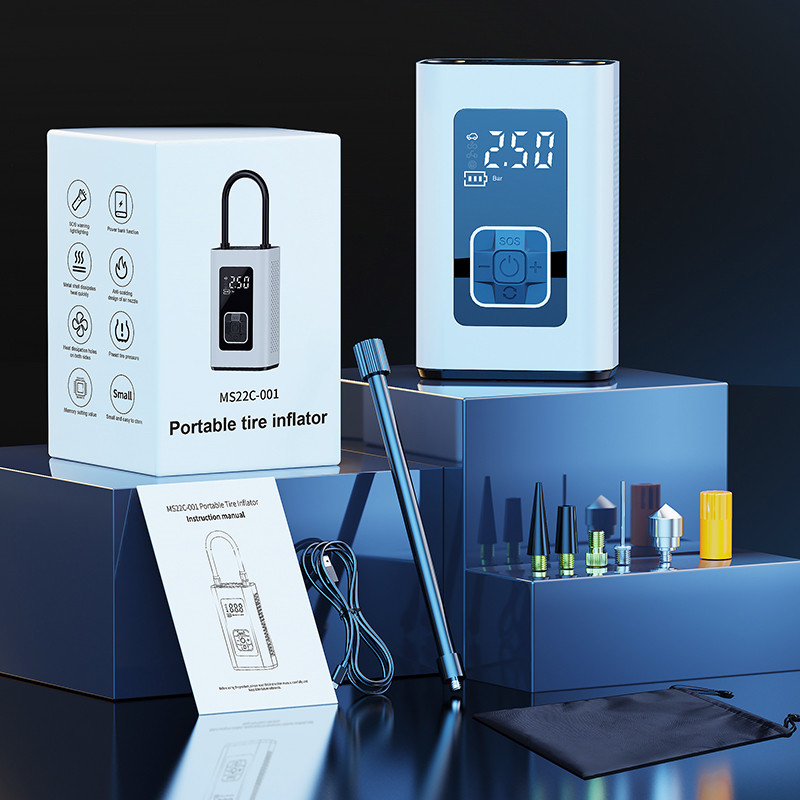

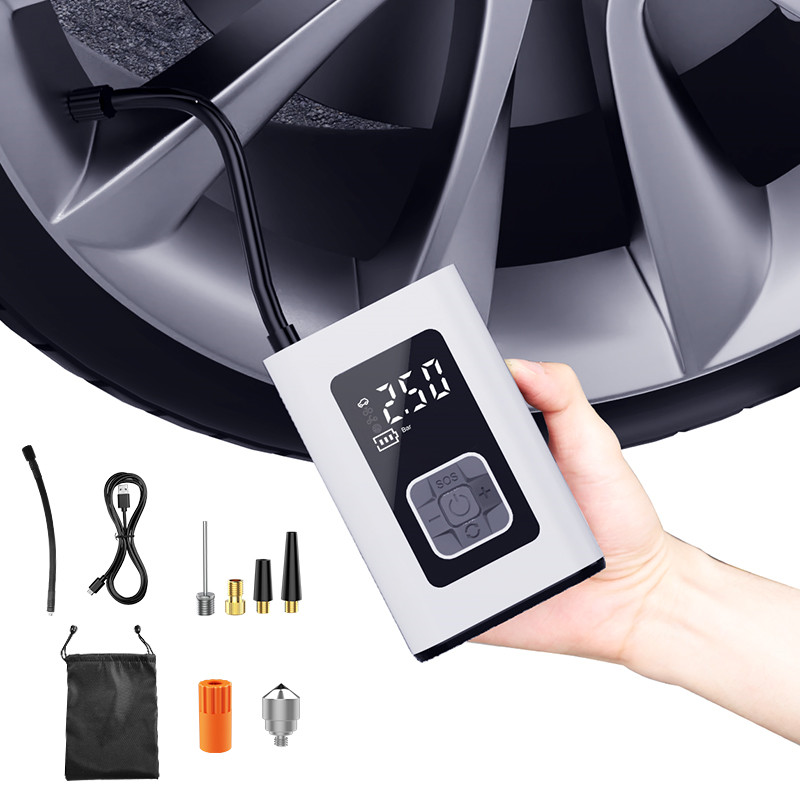

| Product accessories | Main unit, Type-c charging cable, multifunctional inflation nozzle |
| Select to breed | Storage bag, anti-hot silicone, safety hammer |
| Color box | 3 * 70 * 131m 300g white card +120g F tile outer coating |
| Outer container | 25 Pack of 35 * 365 * 150mm BE Double Corrugated Paper |

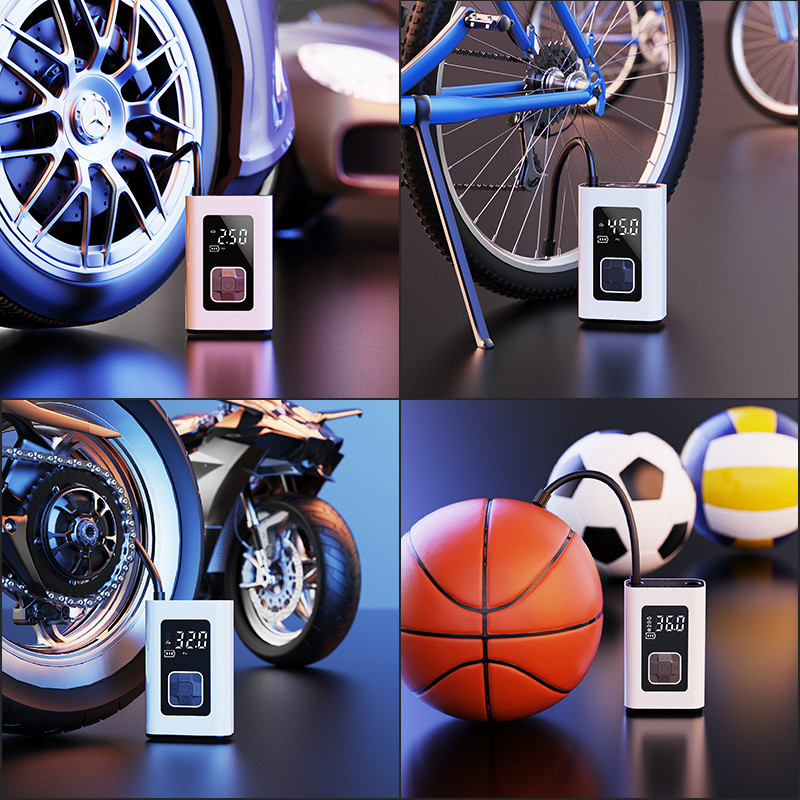

| Test data of each tire type | Inflating time |
| Automobile (190/55 R15) | 7-9 minutes |
| Mountain Bike (27.5×1.95) | 1: 30 ~ 2: 30 |
| Road bike (700×28C) | 30 ~ 45 seconds |
| Motorcycle | 1 minute 10 seconds -1 minute 30 seconds |
| Basketball (No.7 basketball) | 30 ~ 40 seconds |
